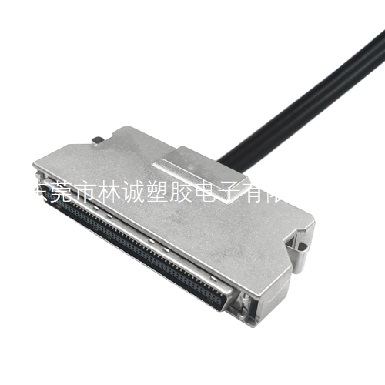

| HPCN 100P公-公线束,锌合金外壳弹片式 | |
| 连接器(connector): |
SCSI(HPCN) 100pin male,zinc alloy hood with latch |
| SCSI(HPCN) 100pin male,zinc alloy hood with latch | |
| 电缆(wire): |
UL20276 50P*28awg+AL+braid+drain ,PVC jacket,color black,OD 11.5mm |
| 颜色(color): | Black |
| 长度(length): | 1M,3M…30M.(Customizable) |
| 电气特性(Electrical characteristics): | a) Contact Currect Rating: 5 Amp |
| b) Dielectric Withstanding Voltage:500V AC | |
| c) Insulation Resistance: 1MΩ/Min | |
| d) Contact Resistance: 5Ω/Max | |
| e) Operaion Temperature: -25℃～+85℃ | |
| 产品特点(productfeatures): |
●优质纯铜双绞电缆 Pure copper double stranded cable |
|
●双层屏蔽(铜编织) Double shield (braided copper) |
|
|
●锌合金外壳更高档 Zinc alloy housing is more upscale |
|
| 产品应用(application): |
工业设备,运动控制卡等信号传输. Industrial equipment, motion control card |
| 环保标准(Environmental standards): | Rohs compliant |
